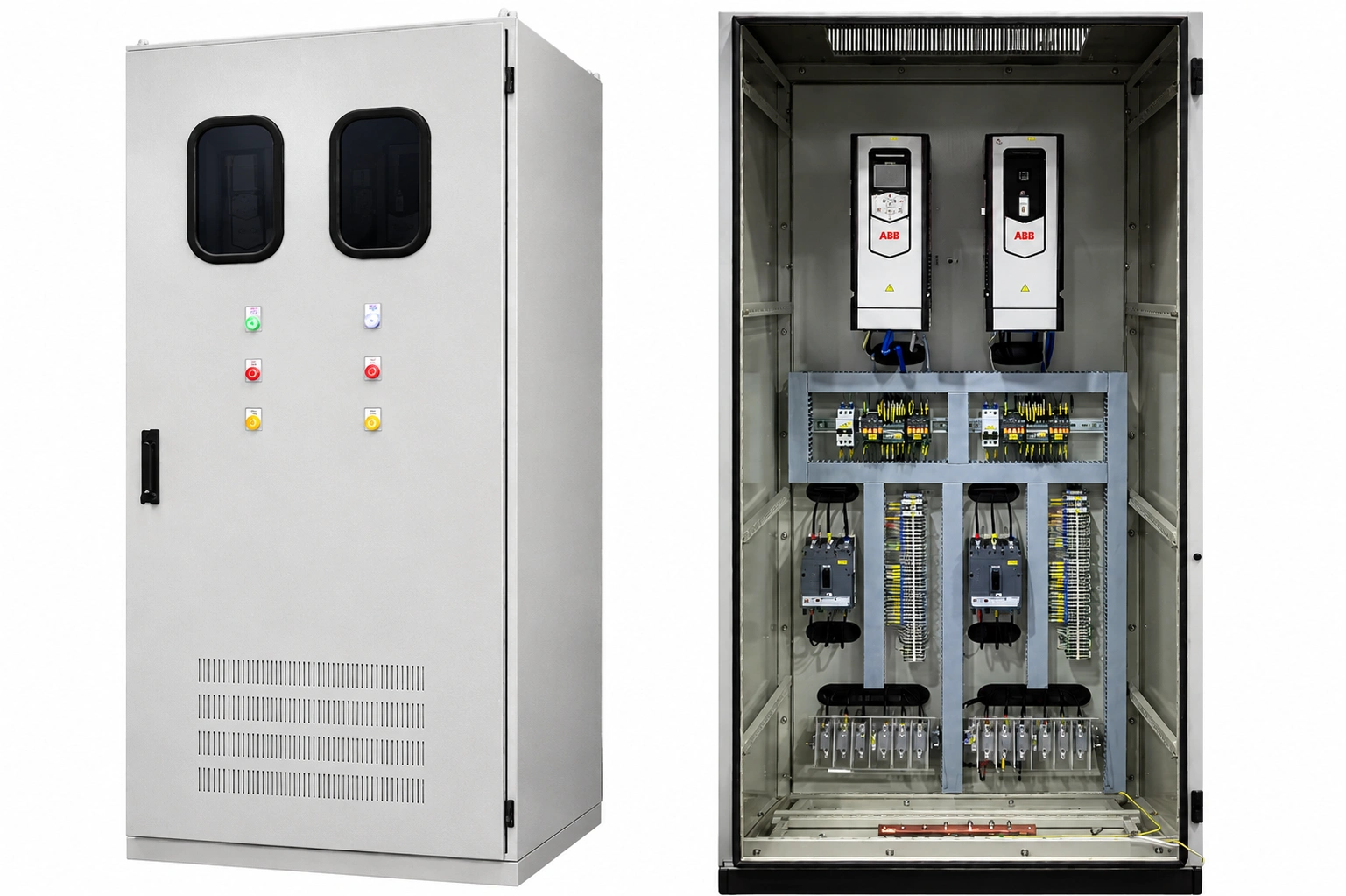

VFD Panels
VFD Panel delivering efficient solutions for variable motor speed control and energy optimization.
Specifications
| SPECIFICATION | VFD Panels |
|---|---|
| Operating Voltage | 380-690V AC. |
| Rated Frequency | 50/60Hz. |
| Insulation Voltage | 690V/800V |
| Short Circuit Capacity | Upto 100 kA |
| Confirming Standard | IS8623/IEC61439-1&2 |
| Form of Separation | Form 3A/4A/4B. |
| Cable Entry | Top/Bottom as req. |
FAQ's
What is a VFD Panel?
A Variable Frequency Drive (VFD) panel is an electrical system used to control the speed, torque, and direction of AC motors by varying the input voltage and frequency, improving energy efficiency and process control.
Where is this panel typically used?
VFD panels are commonly used in industrial machinery, pumps, compressors, conveyor systems, HVAC installations, and manufacturing processes requiring precise motor speed control.
Is this panel suitable for continuous industrial operation?
Yes, VFD panels are designed for continuous industrial operation, providing stable motor performance, smooth start and stop functionality, and protection against electrical faults.
Can this panel be integrated with existing electrical systems?
Integration depends on site conditions, system compatibility, and project requirements. Where feasible, VFD panels can be configured to integrate with existing power distribution and automation systems.
What testing is carried out before panel dispatch?
Before dispatch, the panel undergoes routine and functional testing, including wiring inspection, component verification, drive parameter checks, and operational testing as applicable to project requirements.
Is installation and commissioning support available?
Installation and commissioning support may be provided based on project scope and site conditions. Where applicable, technical assistance is offered to ensure proper installation and safe operation at site.
