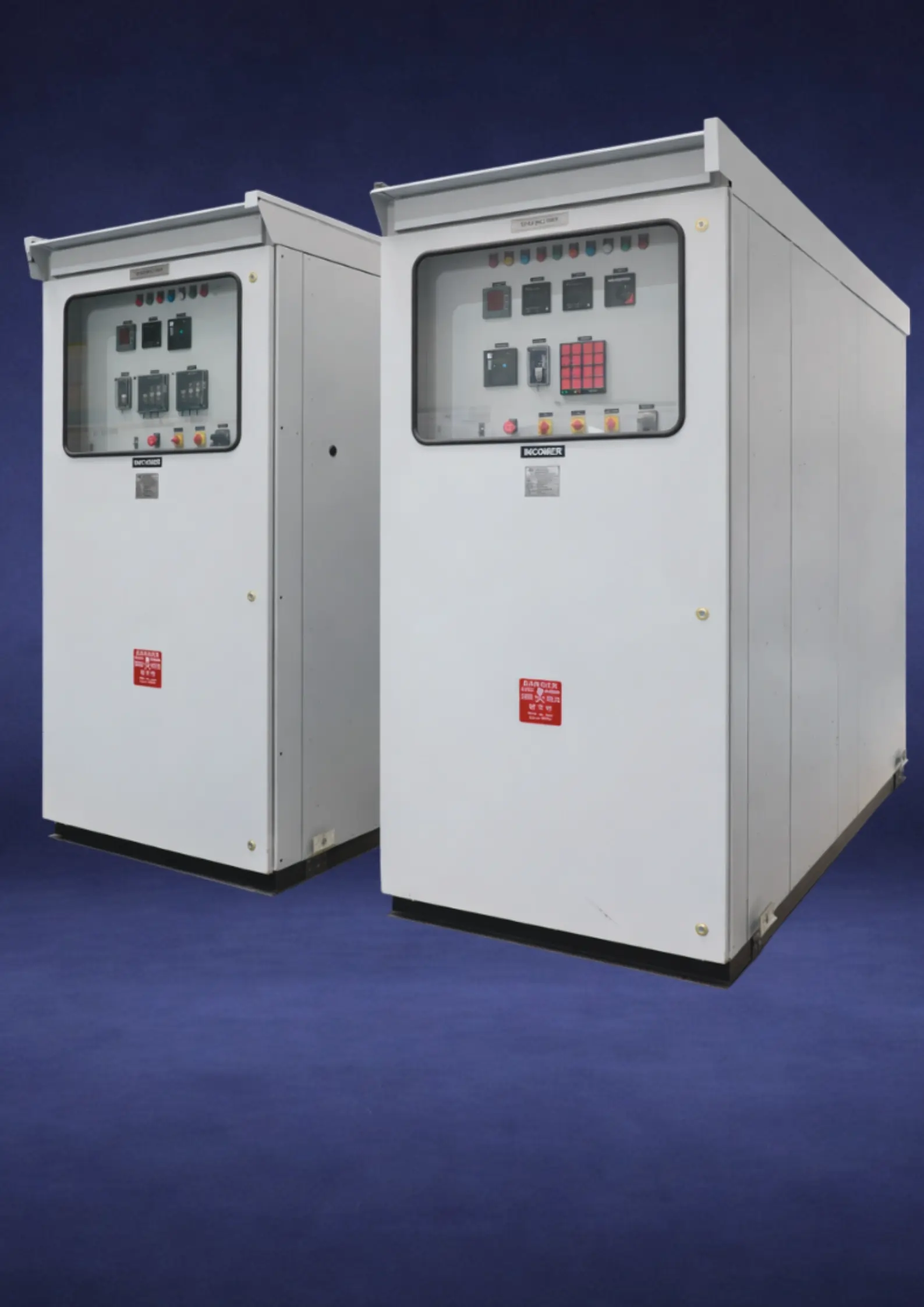

MV Panels
MV Panel delivering reliable solutions for safe control, protection, and high-voltage power distribution using Schneider Electric switchgear.
Specifications
| SPECIFICATION | MV Panels |
|---|---|
| Operating Voltage | Upto 36 kV |
| Rated Frequency | 50/60Hz. |
| Insulation Voltage | 36 kV |
| Short Circuit Capacity | Upto 26.3 kA |
| Rated Current | 3150 Amp. |
| Confirming Standard | IS 3427 |
| Form of Separation | 3A |
| Degree of Protection | IP55 |
| Cable Entry | Top/Bottom as req. |
FAQ's
What is a Medium Voltage (MV) Panel?
A Medium Voltage (MV) panel is an electrical switchgear assembly designed to control, protect, and isolate equipment in power distribution systems typically operating between 3.3 kV and 33 kV. Chandra Electrical & Electronics is an authorized licensed partner for manufacturing MV panels using Schneider Electric switchgear, ensuring safe, reliable, and consistent high-voltage power delivery.
Where is this panel typically used?
MV panels are commonly used in utility substations, industrial facilities such as steel and cement plants, renewable energy projects, large commercial complexes, and infrastructure installations requiring high-voltage power management.
Is this panel suitable for continuous industrial operation?
Yes, MV panels are designed for continuous industrial operation, featuring robust construction, reliable components, and advanced protection systems to ensure stable performance in demanding environments.
Can this panel be integrated with existing electrical systems?
Integration depends on site conditions, system compatibility, and project requirements. Where feasible, MV panels can be configured to integrate with existing high-voltage distribution systems.
What testing is carried out before panel dispatch?
Before dispatch, the panel undergoes routine and functional testing, including wiring inspection, component verification, protection relay checks, and operational testing, as applicable to project and standard requirements.
Is installation and commissioning support available?
Installation and commissioning support may be provided based on project scope and site conditions. Where applicable, technical assistance is offered to ensure proper installation and safe operation at site.
